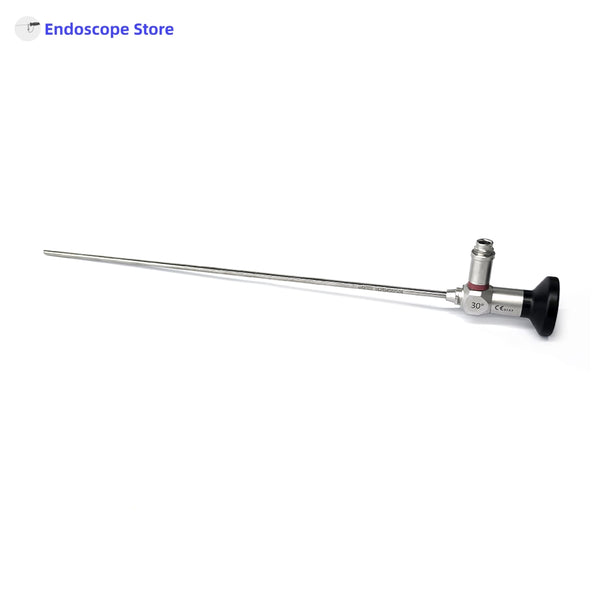

Products Specification
| Work Diameter | 4mm, |
| Work Length | 302mm |
| Design Optical Working Distance | 10mm |

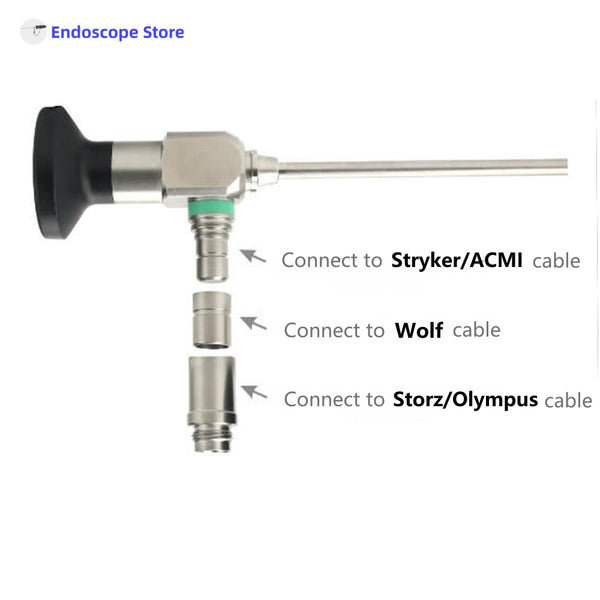

| Light Cable Interface | Storz/Wolf/Olympus/Stryker |
| Design Work Field Shape | Evaluation Scene |
| View Field | 60° |
| View Angle | 12° |

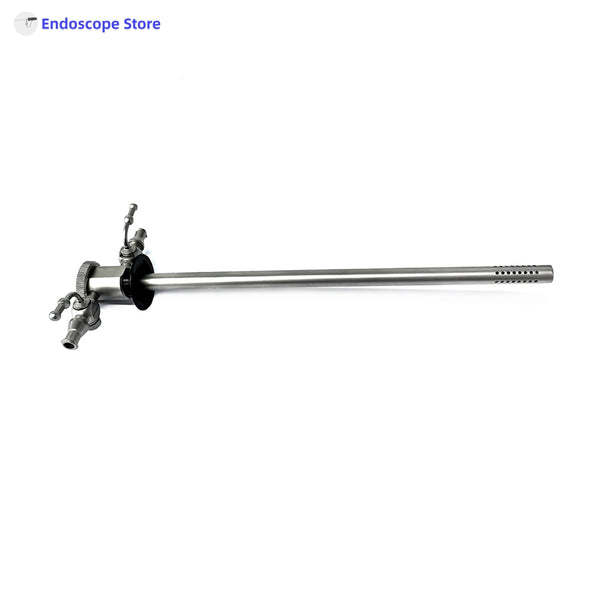

| Sheath Outer Diameter | 19.5 Fr (6.5mm), 21.5 Fr(7.1mm) |
| Work Channel Diamter | 5 Fr |
| Field of View Center Angular Resolution | 4.47C/(°) |
| Effective Depth of Field Range | 3~150mm |
| Color Rendering Index Ra under A standard Illuminant | 90 |
| Color Rendering Index Ra under D65 standard Illuminant | 90 |
| Lighting Mirror Body Light Effect ILeR | 0.582 |
| Comprehensive Lens Light Effect SLeR | 0.513 |
| Integrated Edge Lighting SLe-Z | 0.164 |
| Effective Photometric Rate DM | 1500 |
| Control Amount of Unit Relative Distortion VU-Z | ≤16%(Relative Difference) |
| Disinfection method | Low Temperature Plasma, Ozone, Soak |
Note：
1. Please choose suitable product for your power system: Unipolar, Bipolar.

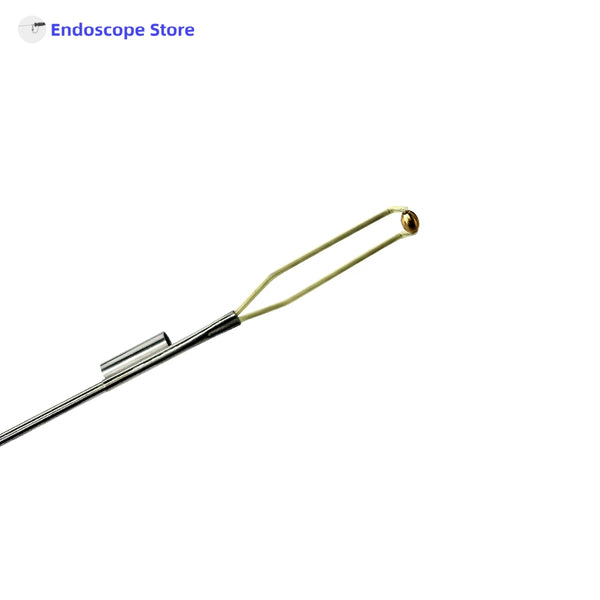

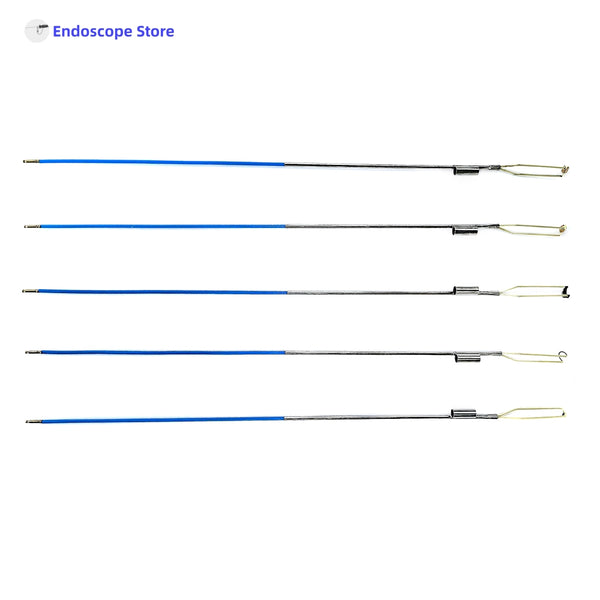

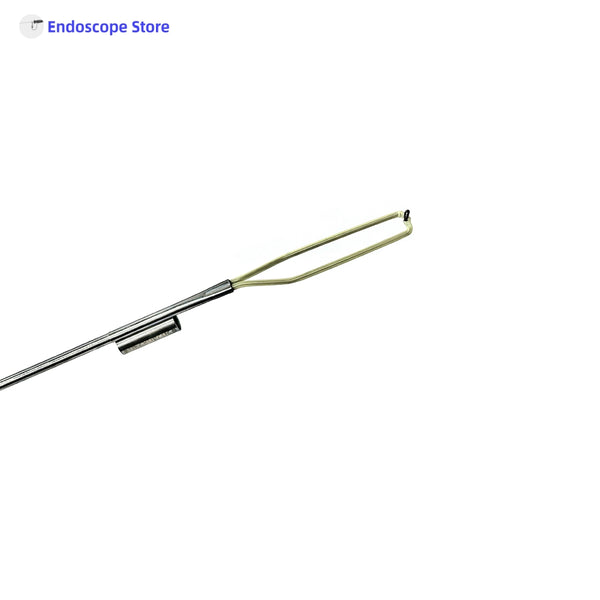

2. Bipolar Resectoscope only have 1 pcs Cutting Loop in default, different from Unipolar.
3. If you also need light source, camera and so on, please have a look at them in our store, we will give you more discount to order them together.
