Wide angle view field, better imaging
Excellent interface manufacturing process to meet your various needs

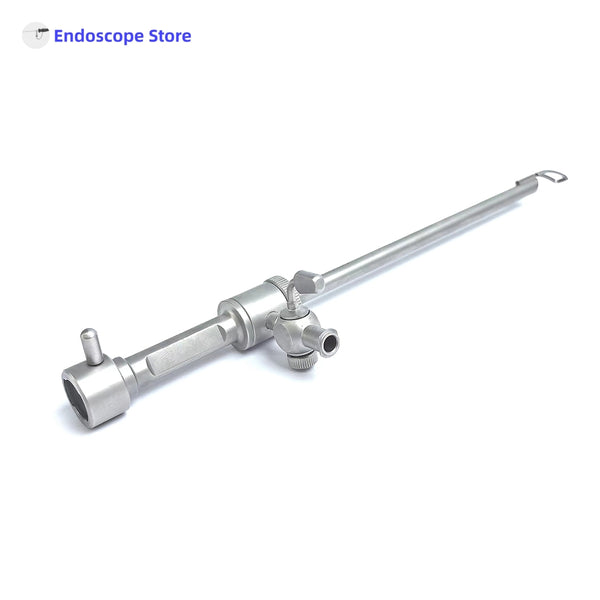

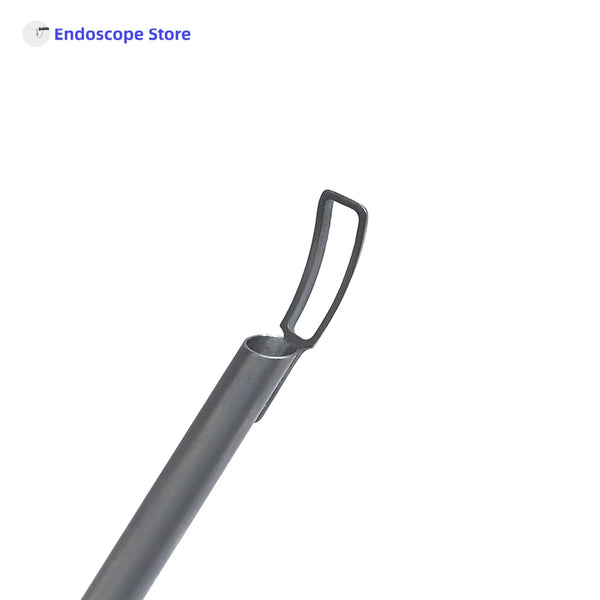

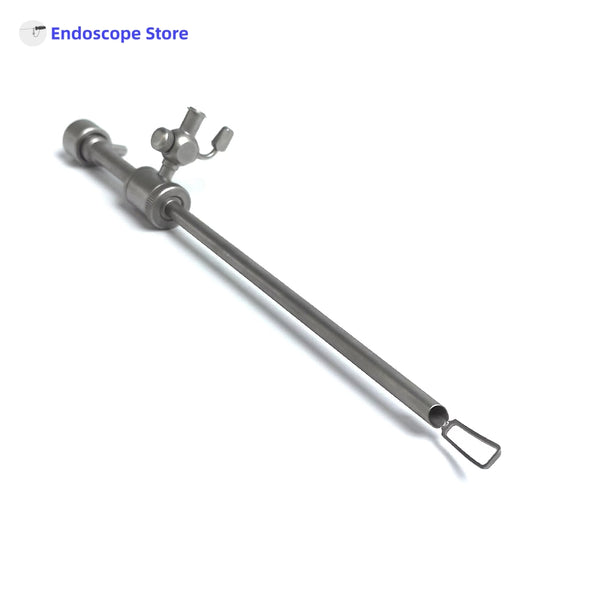

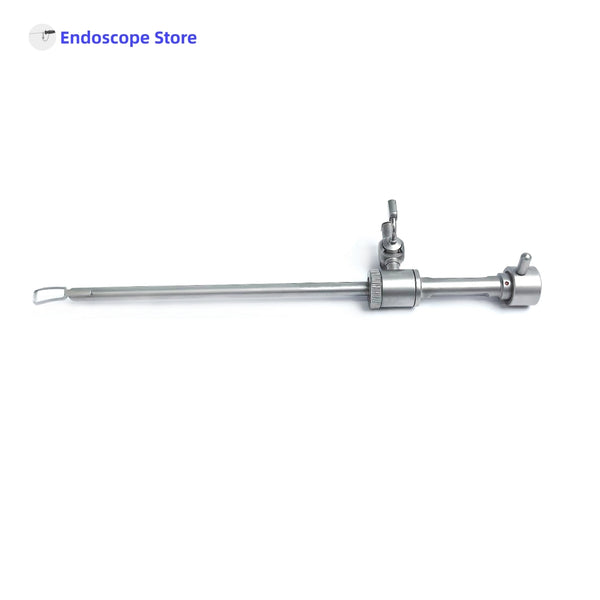

Sheath is customizable
Products Specification
| Work Diameter | 4mm, |
| Work Length | 175mm |

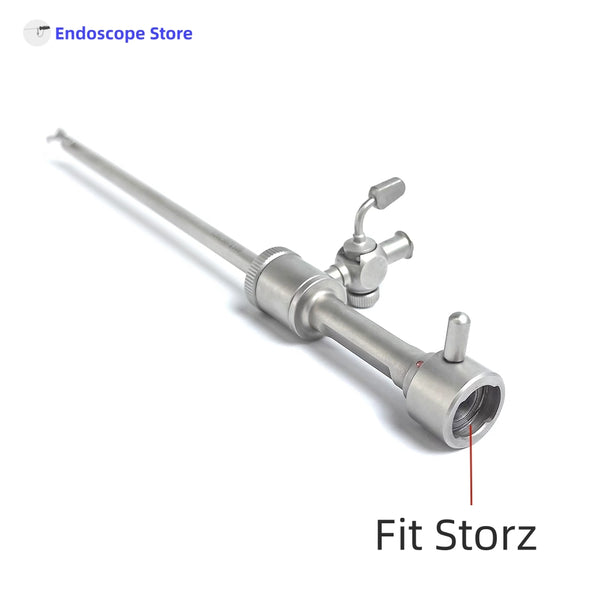

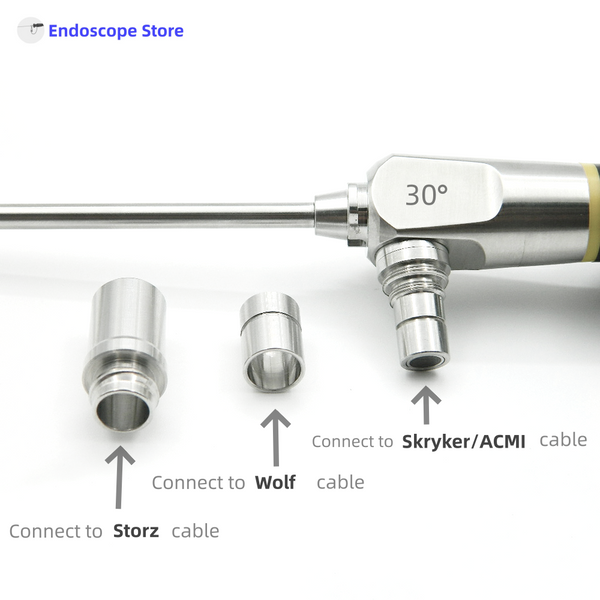

| Light Cable Interface | Storz/Wolf/Olympus/Stryker |
| Design Optical Working Distance | 10mm |
| Design Work Field Shape | Evaluation Scene |
| View Field | 80-105° |

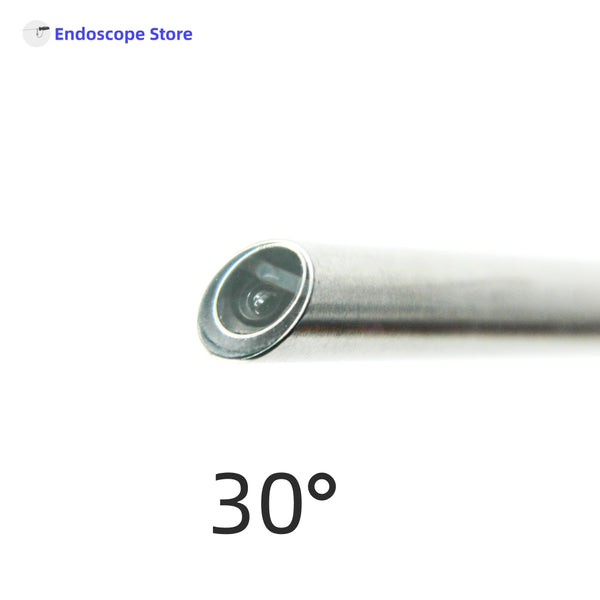

| View Angle | 30° |
| Field of View Center Angular Resolution | 2.31C/(°) |
| Effective Depth of Field Range | 3~100mm |
| Color Rendering Index Ra under A standard Illuminant | 90 |
| Color Rendering Index Ra under D65 standard Illuminant | 90 |
| Lighting Mirror Body Light Effect ILeR | 0.251 |
| Comprehensive Lens Light Effect SLeR | 0.184 |
| Integrated Edge Lighting SLe-Z | 0.034 |
| Effective Photometric Rate DM | 1508 |
| Control Amount of Unit Relative Distortion VU-Z | ≤16%(Relative Difference) |
| Disinfection method | Low Temperature Plasma, Ozone, Soak |
Note：
1. If you have any other requirement, please feel free to let us know.
